Define I/O Functions
Scope: SCOM-100, GE-DIO-42, GE-AI-4

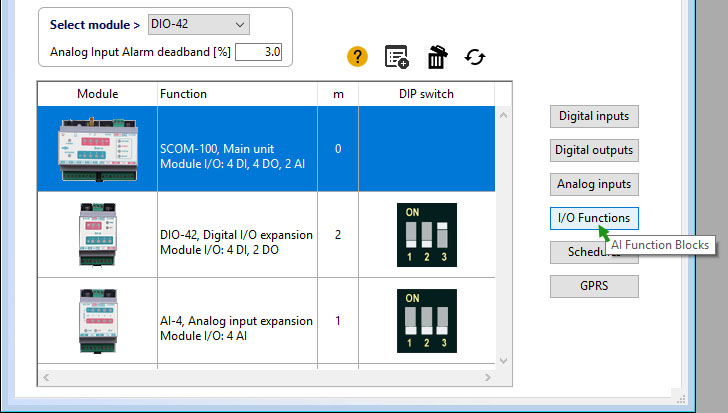

Click on the 'I/O Functions' button to open the respective entry form:

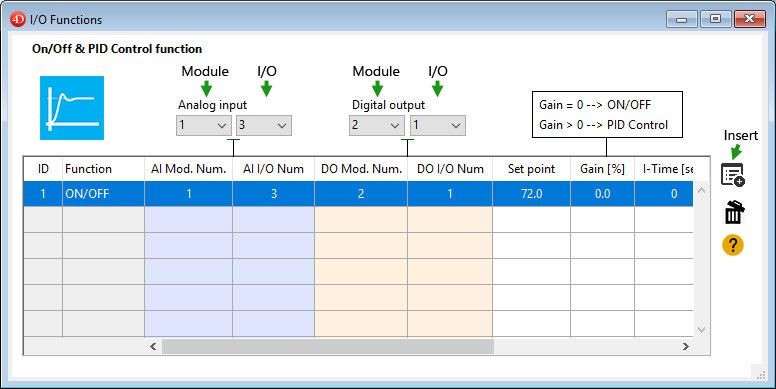

On/Off Function

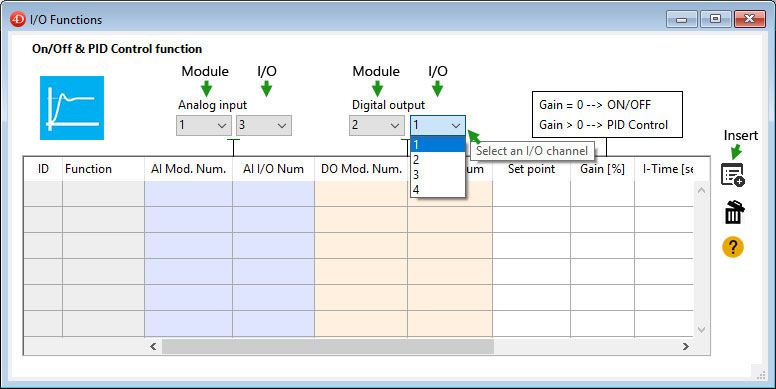

Select an analog input and a digital output and click on the 'Insert' button:
PID Function

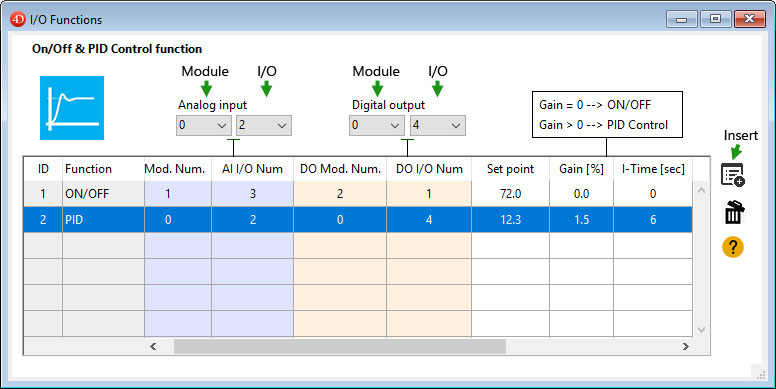

Select an analog input and a digital output and click on the 'Insert' button. The Function column changes to 'PID' if you enter a Gain>0.
Selectable Function parameters are:
Function |
AI Channel |
DO Channel |
Set Point |
Gain |
I-Time |
D-Time |
Cycle Time |
Hysteresis |
On/Off Control |
+ |
+ |
-100000 to 100000 |
0 |
0-1000 |
0-200 |
1-16 min |
0-20% |
PID |
+ |
+ |
-100000 to 100000 |
0-100.0 |
0 |
0 |
0 |
0-20% |

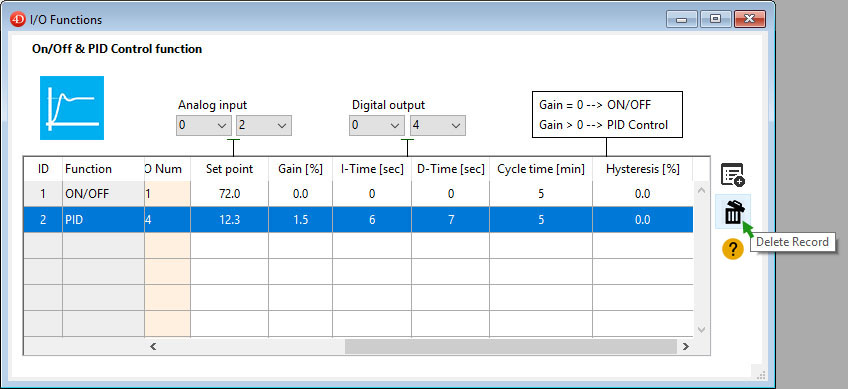

Click on the 'Delete Record' button to remove the selected function.
