Configure Analog inputs

Scope: SCOM-100, GE-AI-4

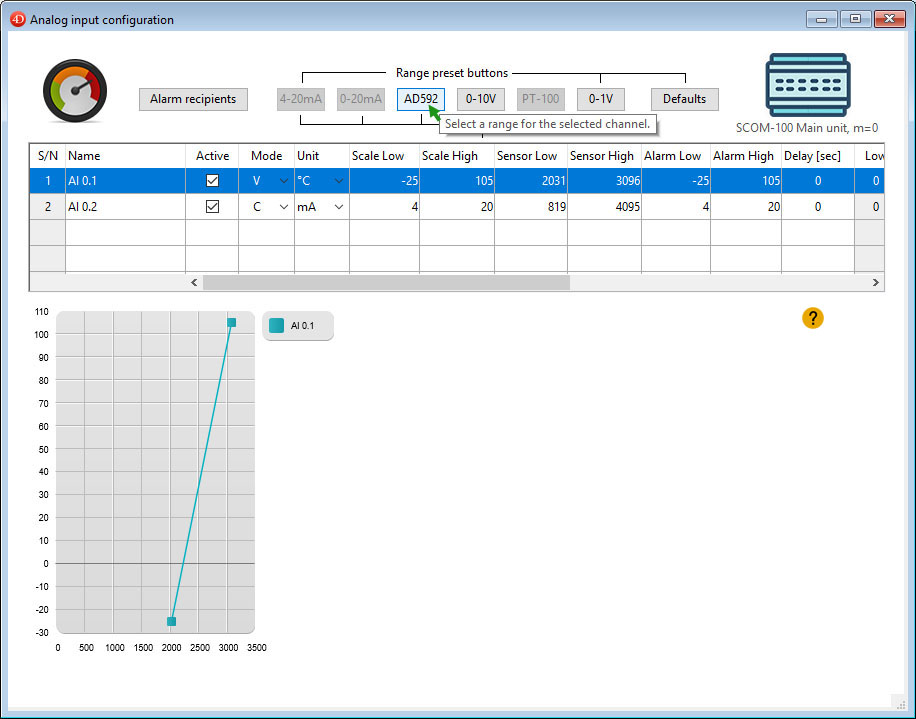

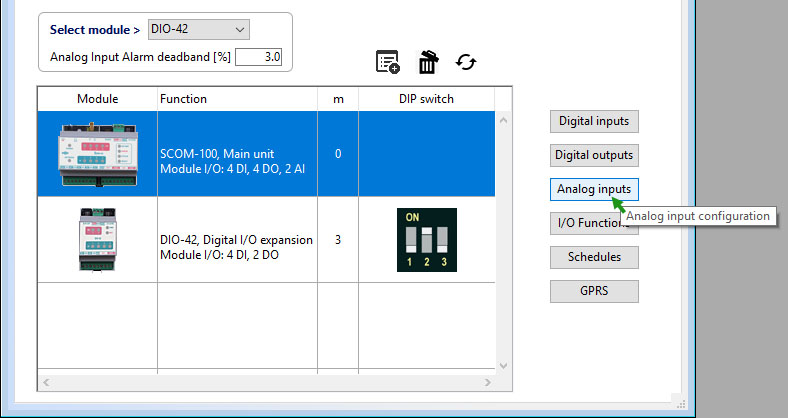

Select a module and click on the 'Analog input configuration'. The AI parameter form opens:

Read the "Device Configuration" section of the Device User Manual.

For fields with choice list, select a predefined value. Check the 'Active' check box to enable AI x logging.

You can select a channel and click on a Range preset button to set predefined values for the specific channel.

Analog input parameters include:
