SCOM-100 Configuration
Scope: SCOM-100, GE-DIO-42, GE-AI-4

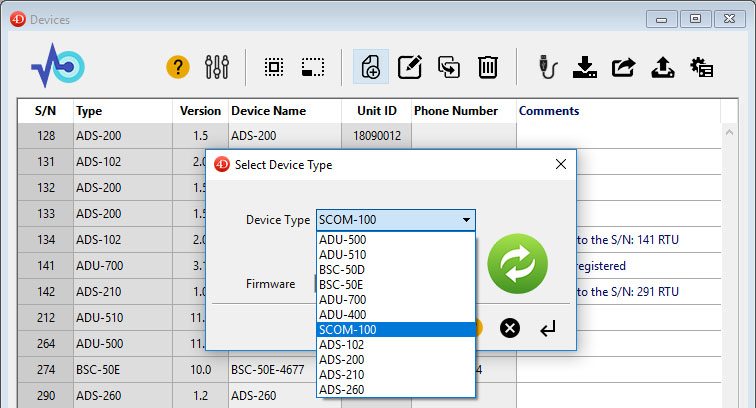

Create a new SCOM-100 configuration:

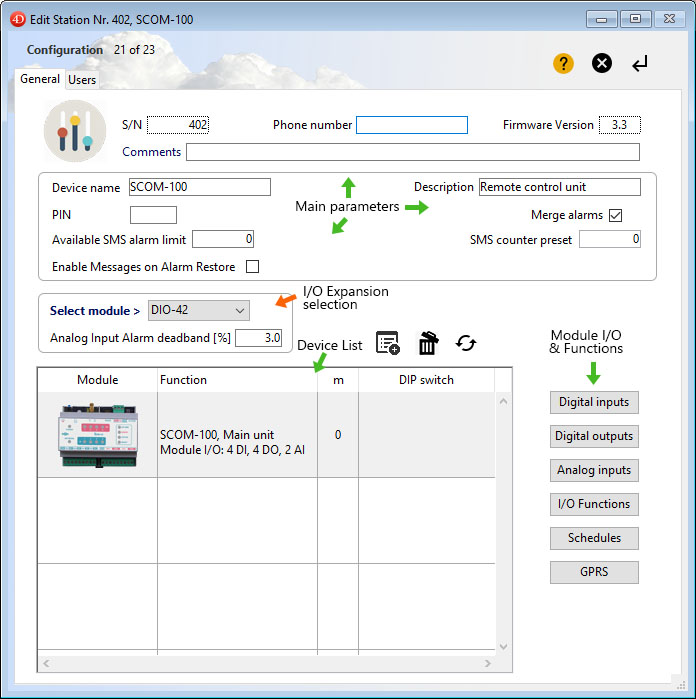

The device configuration form opens:
The SCOM-100 main unit is automatically inserted in the Device list. Following buttons are available for the Device list management.
Main parameters are:
Parameter |
In Defaults |
ASCII Com |
Range |
Device name |
0300 |
15 char max. |
|
Phone number |
0305 |
15 char max. |
|
Description |
0310 |
60 char max. |
|
PIN Number |
0783 |
4 digits |
|
SMS Alarm limit |
0600 |
0-65535 |
|
Merge Alarms |
+ |
0660 |
|
SMS Counter preset |
0650 |
0-4294967295 |
|
Enable Alarm Restore Messages |
+ |
0635 |
|
AI alarm dead band |
+ |
1290 |
0.0 - 5.0 % |
Module I/O configuration buttons:
I/O Configuration |
Main unit |
GE-DIO-42 |
GE-AI-4 |
Digital inputs |
+ (4) |
+ (4) |
|
Digital outputs |
+ (4) |
+ (2) |
|
Analog inputs |
+ (2) |
+ (4) |
|
I/O Functions |
+ (4) |
||
Schedules |
+ (10) |
||
GPRS |
+ |
