Configure Digital outputs
Scope: SCOM-100, GE-DIO-42

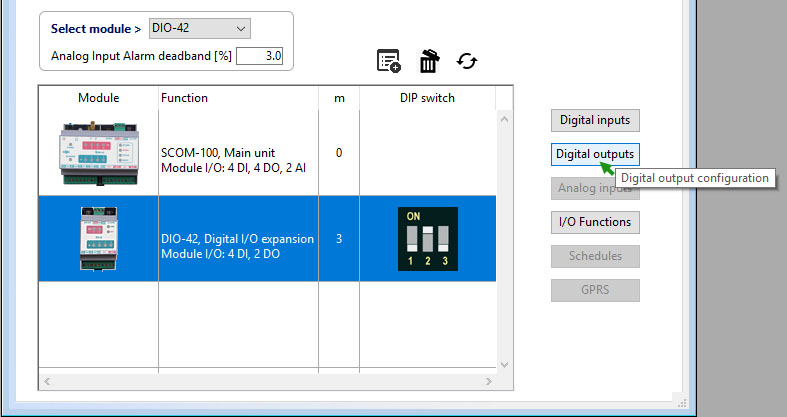

Select a module and click on the 'Digital outputs configuration'. The DO parameter form opens:
Read the "Device Configuration" section of the Device User Manual.
For fields with choice list, select a predefined value.
Digital output parameters include:
Parameter |
In Defaults |
ASCII Com |
Range |
SCOM-100 |
GE-DIO-42 |
S/N (Channel number) |
1100 |
x |
x=4 |
x=4 |
|
Start up state |
+ |
1070/1071 |
1/0 |
+ |
+ |
Mode |
+ |
1090,1030,1045,1045 |
R, T, M, I |
+ |
+ |
Schedule ID |
1030 |
1-9 |
+ |
+ |
|
ON Duration |
1040 |
0-1320 min |
+ |
+ |
|
OFF Duration |
1040 |
0-1320 min |
+ |
+ |
|
DI Channel |
1045 |
DI m,y |
+ |
+ |
|
DI Transition |
1045 |
positive/negative |
+ |
+ |
|
Delay |
1045 |
0-255 sec |
+ |
+ |

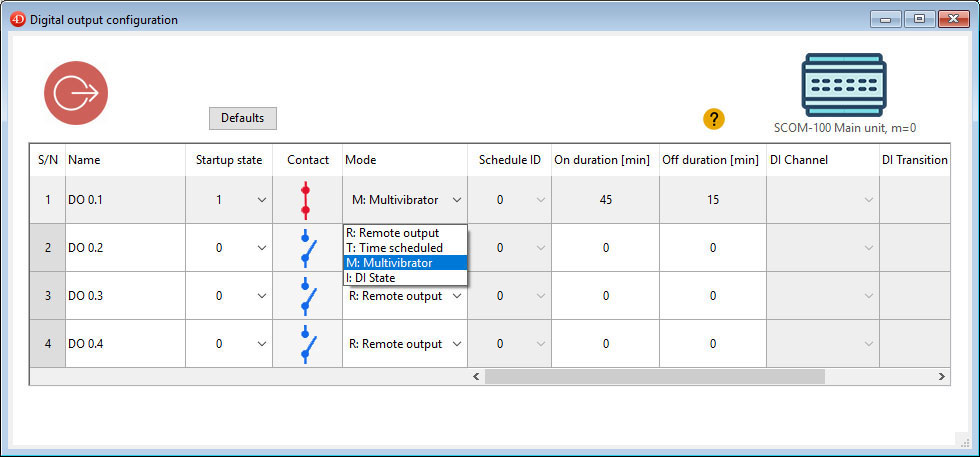

Selectable Mode parameters are:
Mode |
Schedule ID |
On duration |
Off Duration |
DI Channel |
DI Transition |
Delay |
Remote Output |
||||||
Time scheduled |
+ |
|||||
Multivibrator |
+ |
+ |
||||
DI Transition |
+ |
+ |
+ |

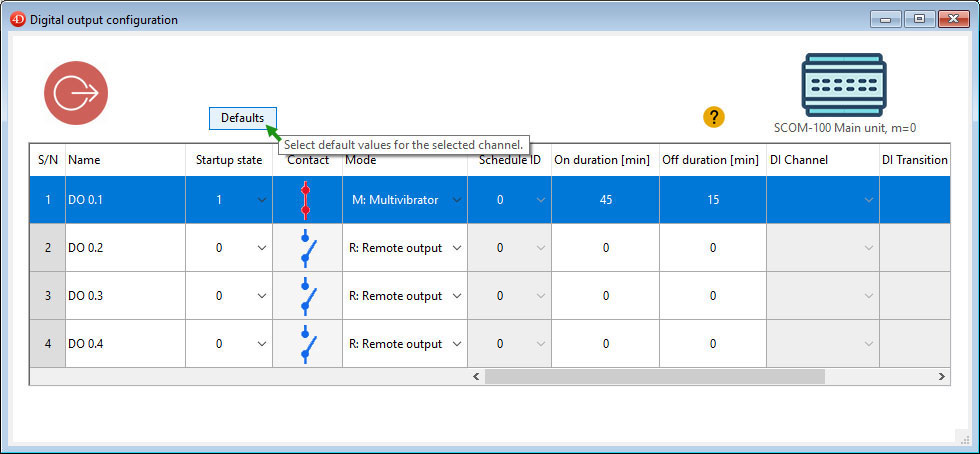

Use the 'Defaults' button to set default values on the selected channel.
