Configure Digital inputs
Scope: SCOM-100, GE-DIO-42

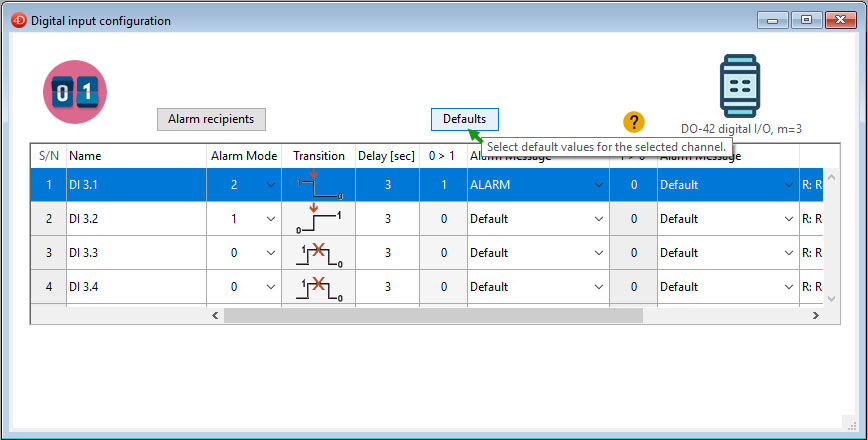

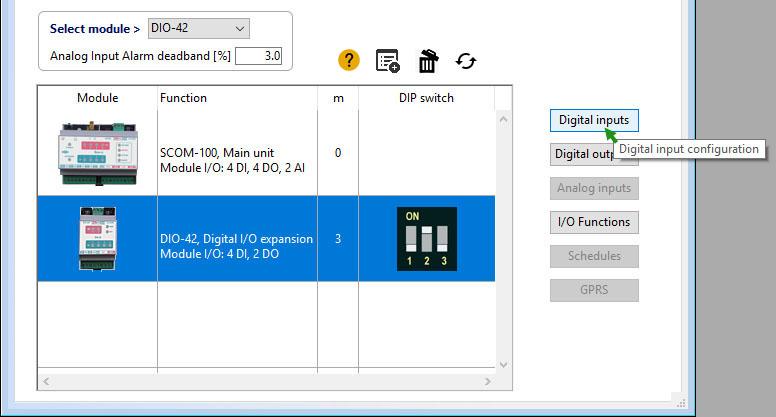

Select a module and click on the 'Digital input configuration'. The DI parameter form opens:
Read the "Device Configuration" section of the Device User Manual.

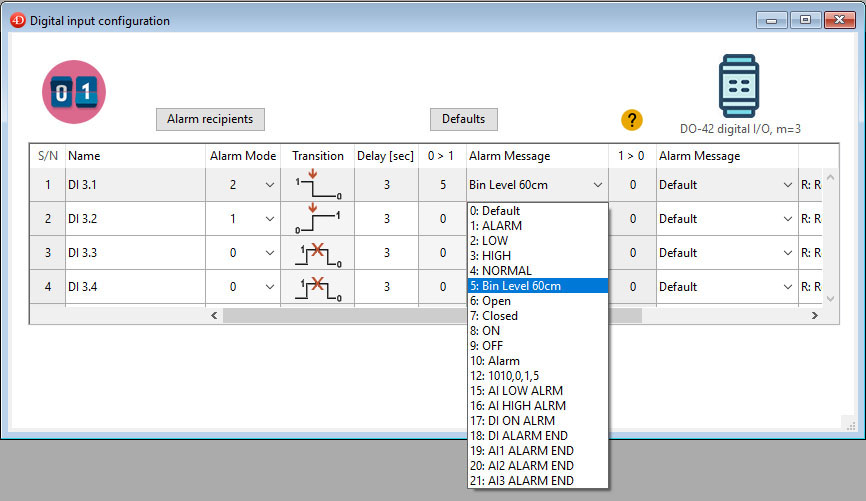

For fields with choice list, select a predefined value.
Digital input parameters include:
Parameter |
In Defaults |
ASCII Com |
Range |
SCOM-100 |
GE-DIO-42 |
S/N (Channel number) |
+ |
1100 |
x |
x=4 |
x=4 |
DI name |
1100 |
15 char max. |
+ |
+ |
|
Alarm mode |
+ |
1100 |
0-3 |
+ |
+ |
Alarm delay [sec] |
1100 |
0-255 |
+ |
+ |
|
0 > 1 Alarm Message |
+ |
1102 |
31 char max. |
+ |
+ |
1 > 0 Alarm Message |
+ |
1101 |
31 char max. |
+ |
+ |
DI Mode |
+ |
1150 |
Input/Counter |
+ |
+ |
Scale factor |
1154 |
0.0000 - 1.0000 |
+ |
+ |
Use the 'Defaults' button to set default values on the selected channel.
