GPRS & OPC parameters
Scope: SCOM-100

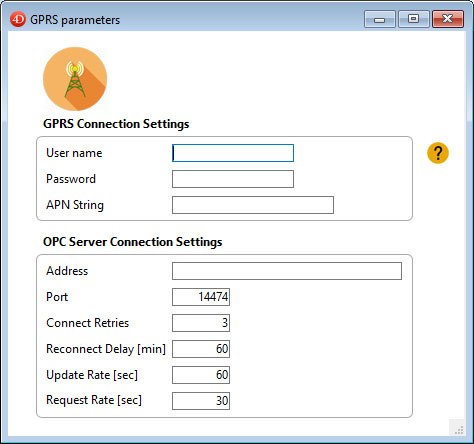

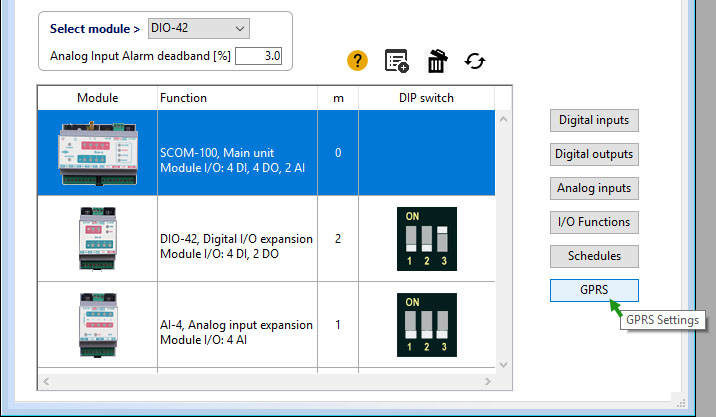

If you are going to use the OPC server select the SCOM-100 Main unit and click on the GPRS Settings button. The GPRS parameter form opens:
Configuration parameters are:
Bearer Parameters |
In Defaults |
ASCII Com |
User name |
+ |
0810 |
Password |
+ |
0810 |
APN String |
+ |
0810 |
FTP Parameters |
In Defaults |
ASCII Com |
Range |
OPC Server Address |
0805 |
0-30 |
|
Server Port |
0806 |
0-65535 |
|
Connect Retries |
0808 |
0-65535 |
|
Reconnect Delay |
0804 |
0-65535 |
|
Update Rate |
0807 |
0-65535 |
|
Request Rate |
0807 |
0-65535 |
