Configuring a Profisens IOT network
Scope: ADU-700, ADS-200, ADS-210, ADS-102
This chapter describes the RF nodes configuration of an ADU-700 RTU/Concentrator.
A more convenient way to manage a Profisens IOT network is described in the chapter 'Drag & Drop Profisens end nodes'.

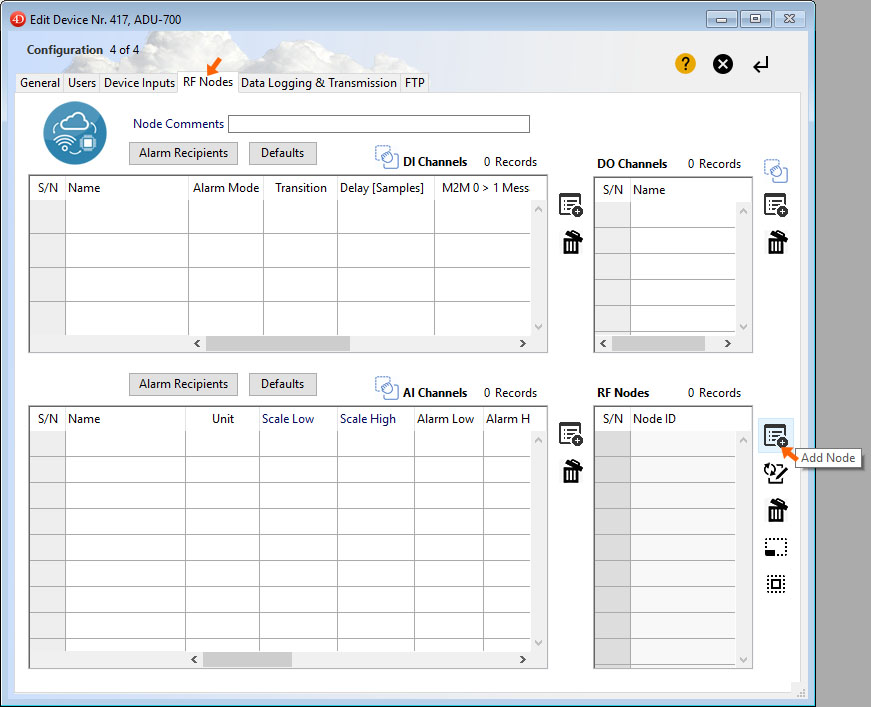

Click on the 'Add Node' button to insert a node in the RF Nodes list.

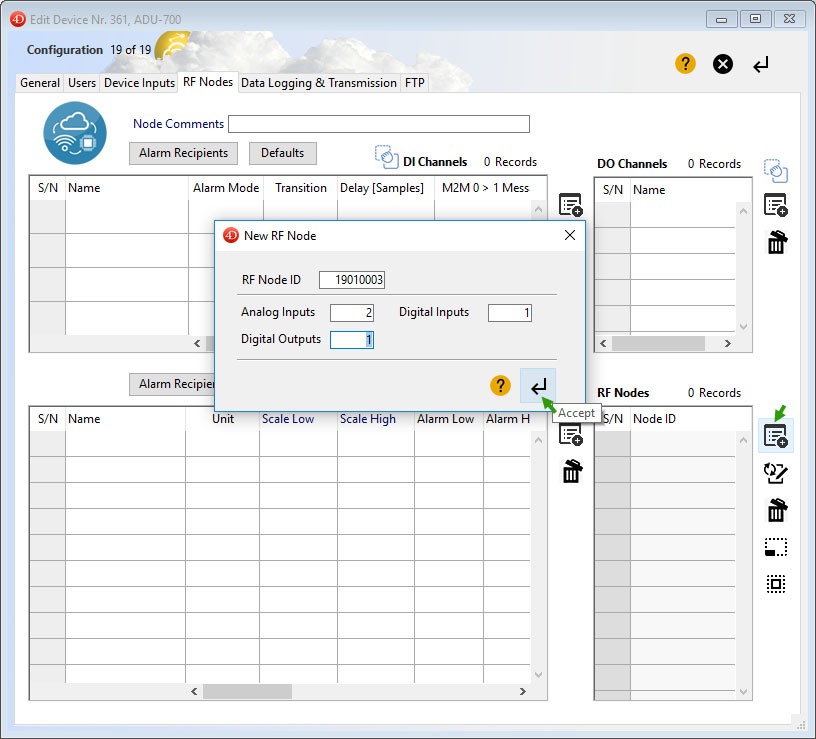

Enter the unique node ID, the number of analog inputs, digital inputs and digital outputs. Click 'Accept' to enter the data.

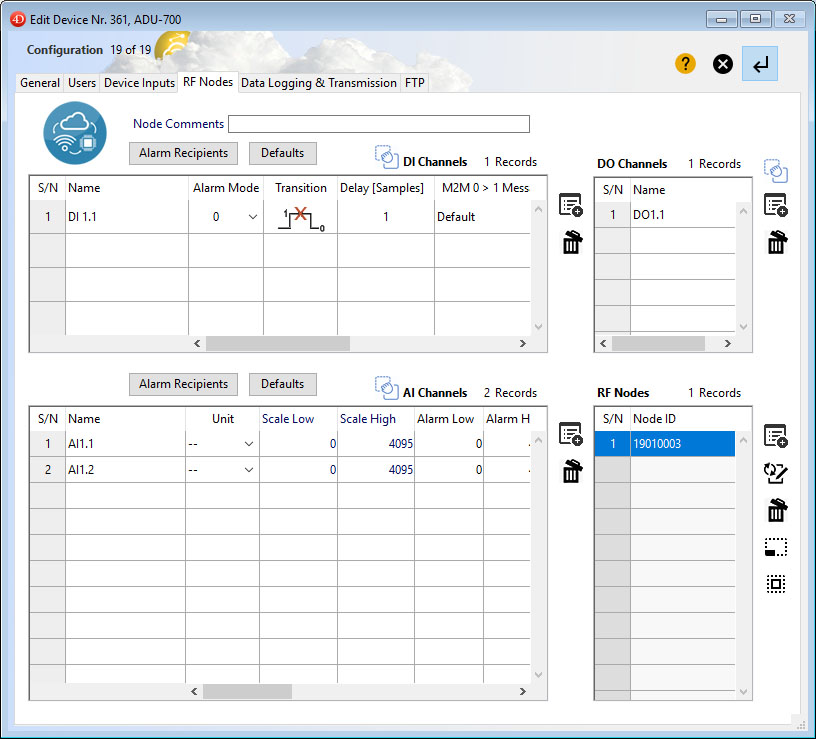

For the I/O channel configuration options, see also chapters:
