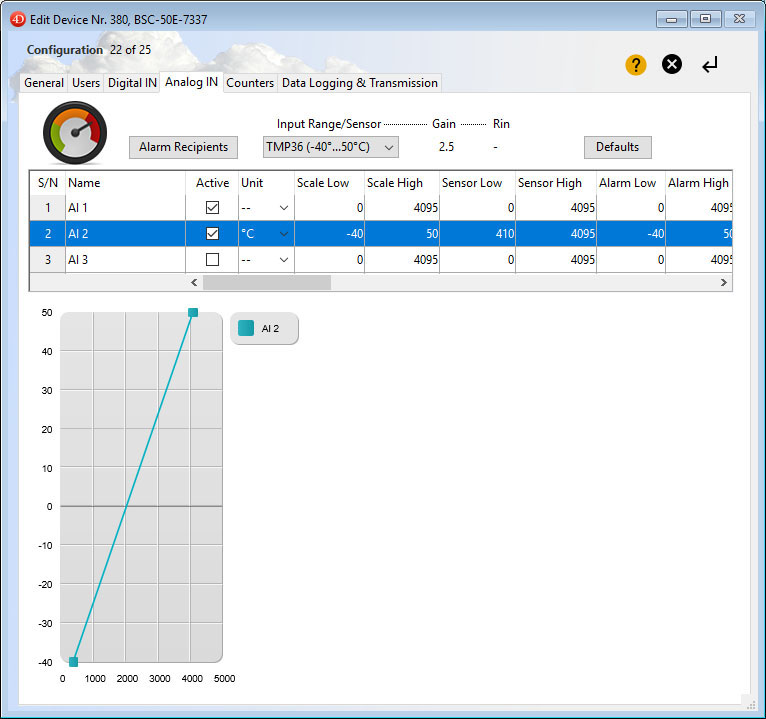

Configuring the analog inputs

Scope: All Devices

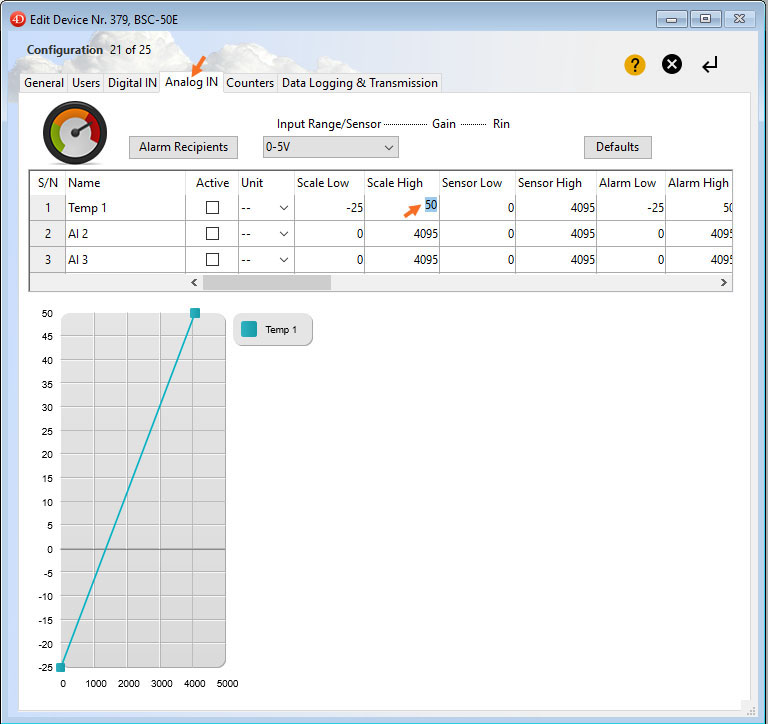

Click on the field to edit string and numerical parameters.

Read the "Device Configuration" section of the Device User Manual.

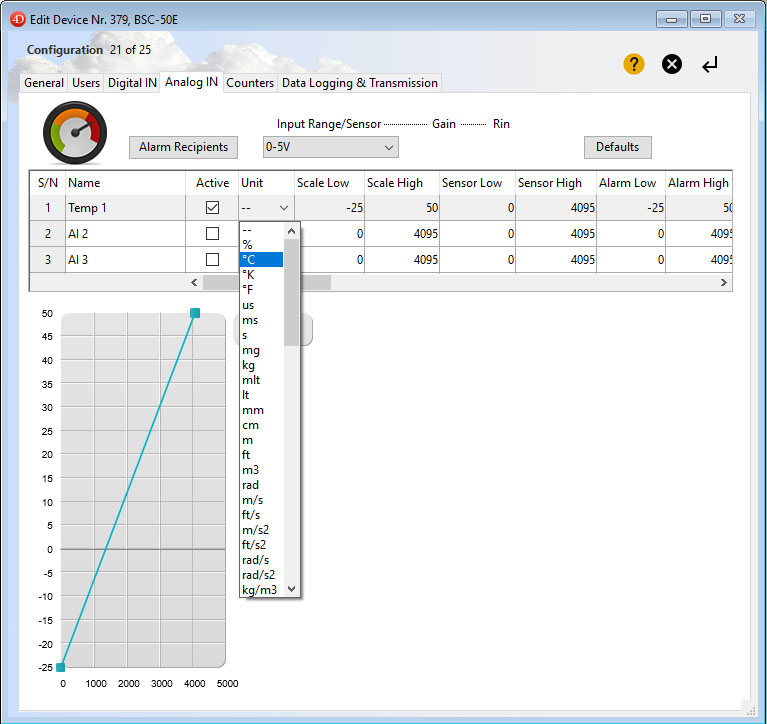

For fields with choice list, select a predefined value. Check the 'Active' check box to enable AI x logging.

Analog input parameters include:

Parameter	In Defaults	ASCII Com	Range	BSC-50x	ADU-500	ADU-510	ADU-700	ADS-200	ADS-260	ADS-210	ADS-102
S/N (Channel number)	+	1200	x	x=3	x=2	x=2	x=64	x=1	x=1	x=1	x=2
AI name		1200	15 char max.	+	+	+	+
Unit	+	1200	0-3	+	+	+	+
Scale Low	+	1200		+	+	+	+	+	+	+	+
Scale High	+	1200		+	+	+	+	+	+	+	+
Sensor Low	+	1200	0-4095	+	+	+	+	+	+	+	+
Sensor High	+	1200	0-4095	+	+	+	+	+	+	+	+
Programmable Gain	+	1207	1-400		+	+
Alarm Low		1200		+	+	+	+
Alarm High		1200		+	+	+	+
Delay [sec]		1291		+	+	+	+
AI sampling delay [sec]		1290	0-255	+	+	+	+	+	+	+	+
M2P Low Alarm Message		1201	32 char max.	+		+	+
M2P High Alarm Message		1201	32 char max.	+		+	+
M2M Low Alarm Message		1202	32 char max.	+		+	+
M2M High Alarm Message		1202	32 char max.	+		+	+
Send Data on High AL		1206	yes/no	+		+	+
Send Data on Low AL		1206	yes/no	+		+	+
M2P Restore Message		1215	32 char max.	+		+	+
M2M Restore Message		1216	32 char max.	+		+	+
Send Data on Restore		1217	yes/no	+		+	+
Alt LR Trigger on High AL		1208	yes/no	+		+
Alt LR Trigger on Low AL		1208	yes/no	+		+

Selecting predefined Scales

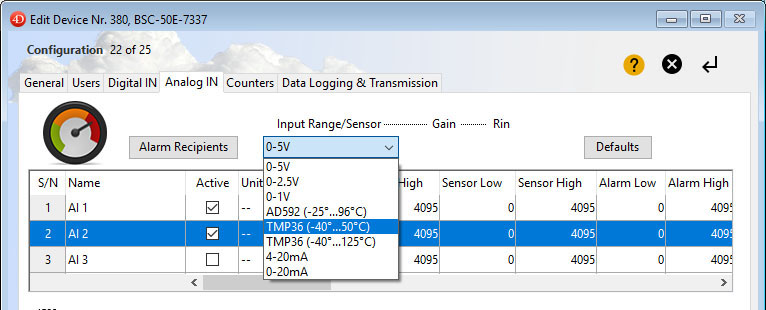

Select an AI channel. Open the combo box 'Input Range' and choose a predefined range for the selected AI channel.

Use the 'Defaults' button to set default values on the selected channel.
