Selecting DI Alarm Recipients

Scope: ADU-500, ADU-510, BSC-50x, ADU-700, SCOM-100

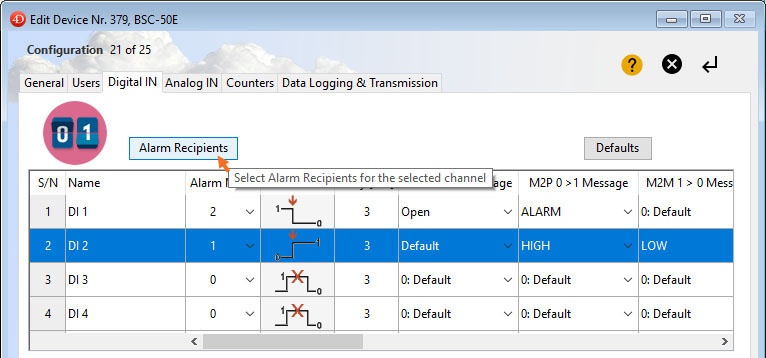

Select a DI channel and click on the 'Alarm Recipients' button.

Adding a Recipient

The 'Recipients for Alarm: DI2' form opens:

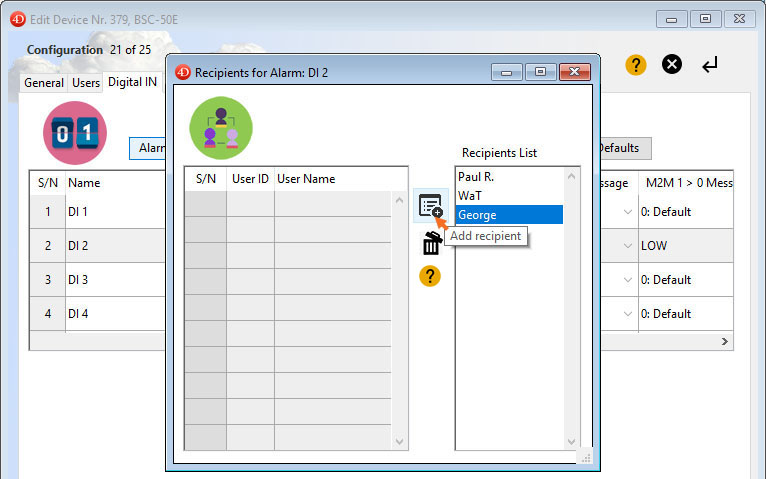

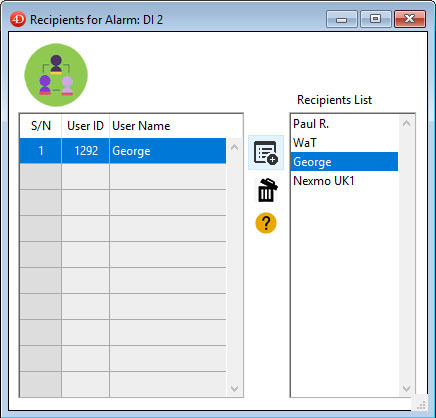

The 'Recipients List' on the right contains the Device users. Select a user and click on the 'Add recipient' button.

Removing a Recipient

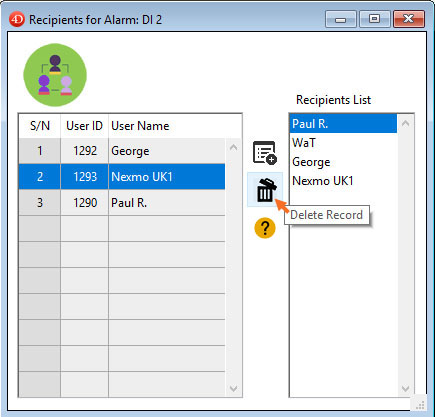

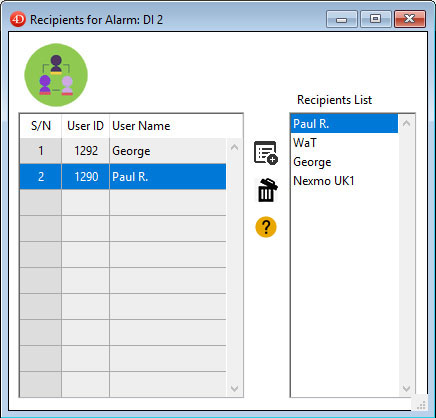

Select a record in the 'Recipients list' and click on the 'Delete Record' button.
