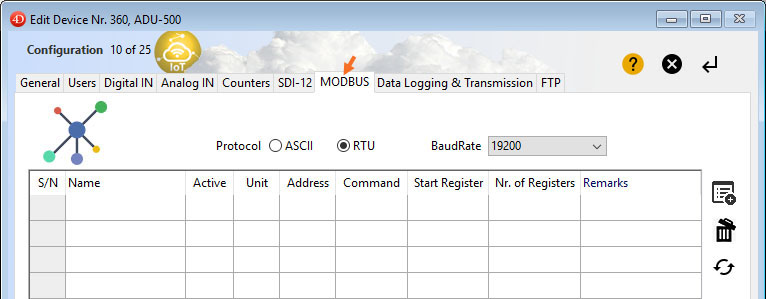

Configuring the MODBUS channels

Scope: ADU-500, ADS-200, ADS-260

Read the "Device Configuration" section of the Device User Manual.

Following options are available:

Add a MODBUS channel.

Delete selected channels.

Renumber the MODBUS channels.

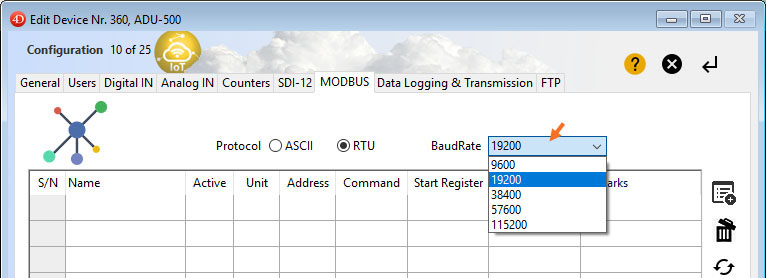

Select the Baud rate for the RS-485 sensor network:

The other serial port settings are fixed to:

  • Data bits:        8
  • Parity:        none
  • Stop bits:        1

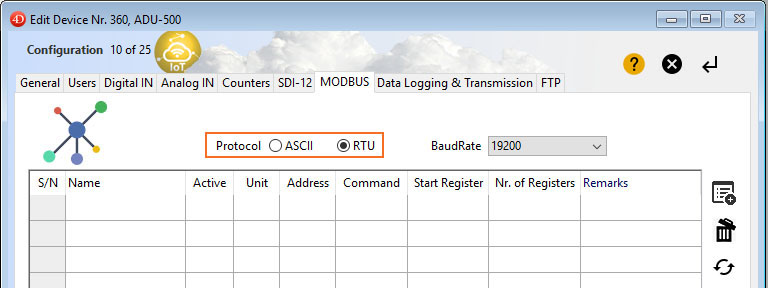

Select the MODBUS protocol between RTU and ASCII:
