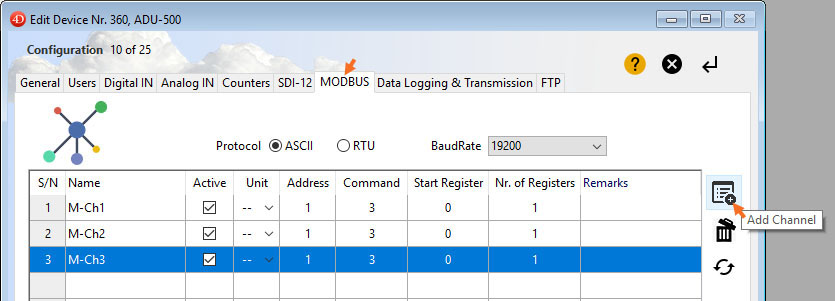

Add a MODBUS channel
The fields 'S/N' and 'Name' are automatically numbered-up.

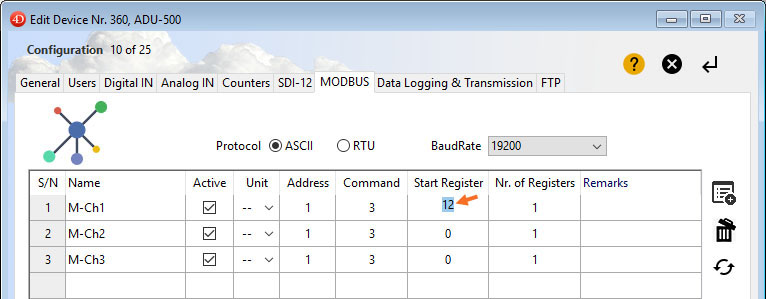

Click on the field, to edit string and numerical parameters.

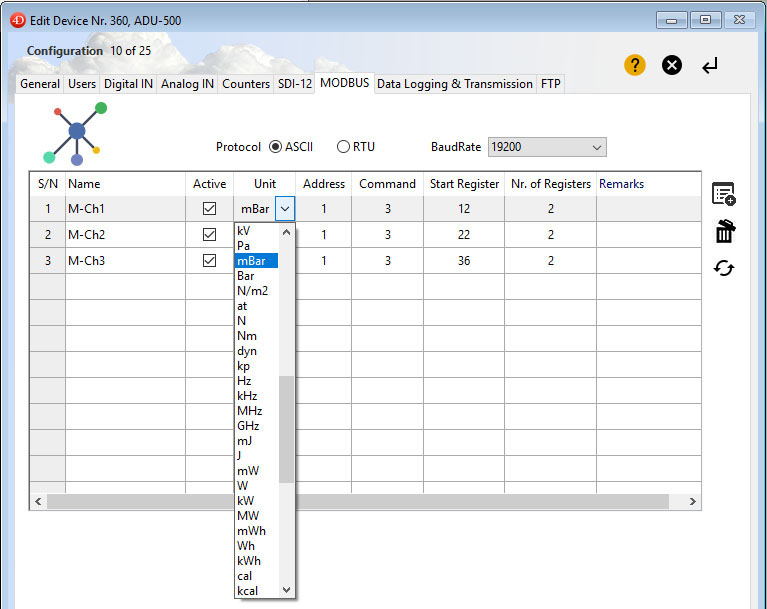

For fields with choice list, select a predefined value. Check the 'Active' check box to enable channel logging.
MODBUS channel parameters include:
Parameter |
In Defaults |
ASCII Com |
Range |
ADU-500 |
ADS-200 |
ADS-260 |
Protocol |
+ |
1244 |
ASCII/RTU |
+ |
+ |
+ |
Baud Rate |
+ |
1245 |
9600...115200 |
+ |
+ |
+ |
S/N (Channel number) |
1241 |
1-32 |
+ |
+ |
+ |
|
Channel Name |
+ |
1241 |
15 char max. |
+ |
||
Unit |
+ |
1241 |
+ |
|||
Address |
1241 |
1-3 |
+ |
+ |
+ |
|
Command |
1241 |
3 |
+ |
+ |
+ |
|
Start Register |
1241 |
0-65535 |
+ |
+ |
+ |
|
Nr. of Registers |
1241 |
1 , 2 |
+ |
+ |
+ |
