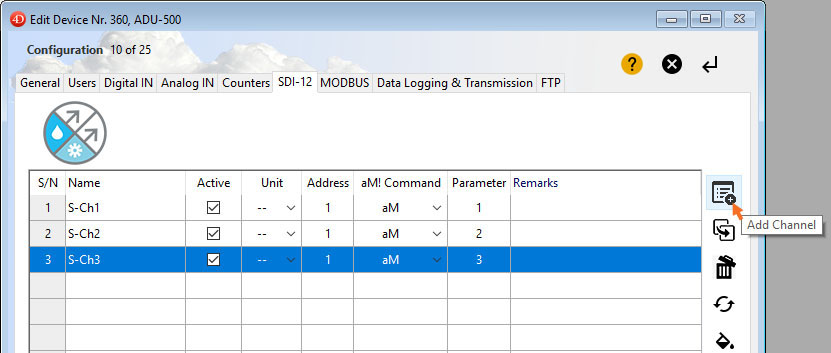

Add an SDI-12 channel
The fields 'S/N', 'Name' and 'Parameter' are automatically numbered-up.

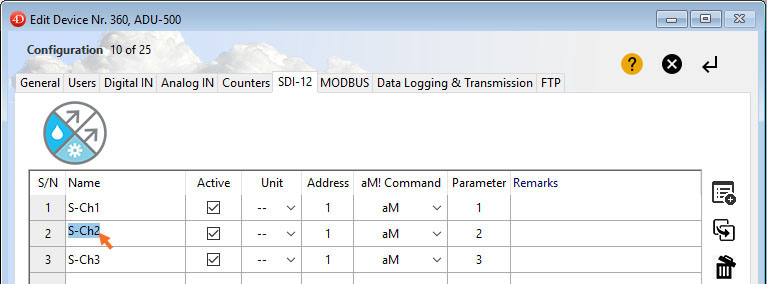

Click on the field, to edit string and numerical parameters.

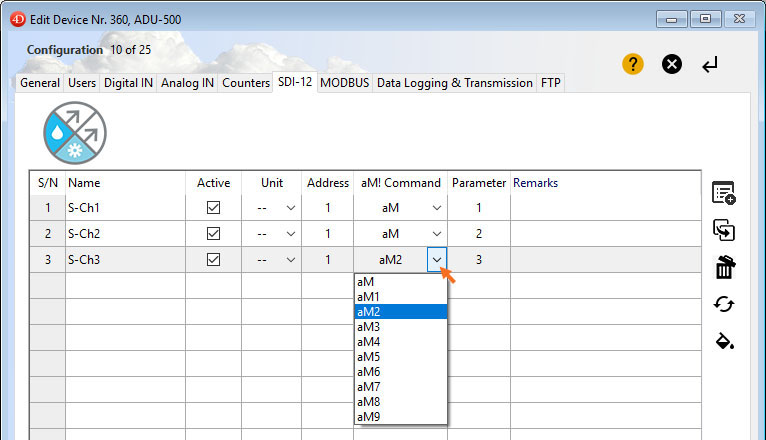

For fields with choice list, select a predefined value. Check the 'Active' check box to enable channel logging.
SDI-12 channel parameters include:
Parameter |
In Defaults |
ASCII Com |
Range |
ADU-500 |
ADU-510 |
ADS-200 |
ADS-260 |
S/N (Channel number) |
1230 |
1-32 |
+ |
+ |
+ |
+ |
|
Channel Name |
+ |
1230 |
15 char max. |
+ |
+ |
||
Unit |
+ |
1230 |
+ |
+ |
|||
Address |
1230 |
0-9 |
+ |
+ |
+ |
+ |
|
aM! Command |
+ |
1230 |
+ |
+ |
+ |
+ |
|
Parameter |
1230 |
0-9 |
+ |
+ |
+ |
+ |
