Setting the Device parameter defaults

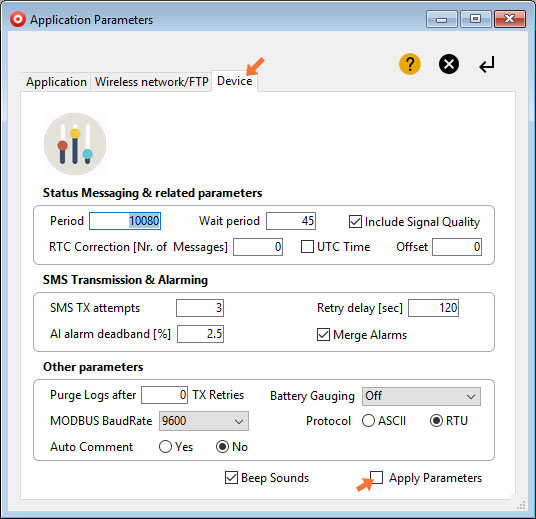

Click on the 'Device' Tab:

Read the "Device Configuration" section of the Device User Manual.

Selectable parameters are:

Status messaging parameters:
  • Status message period in [min]. For example: 10080 minutes = 7 days.
  • Wait period in [sec]. Range: 0-255 seconds.
  • Include Signal Quality: yes, no.
  • RTC Correction [Nr. of Status Messages]: Period for sending an RTC correction SMS.
  • UTC Time: Use of Coordinated Universal Time with offset parameter.
SMS Transmission & Alarming
  • SMS Transmission attempts: 1-255
  • Retry delay [sec]: Delay between attempts in seconds.
  • Include Signal Quality: yes, no
  • AI alarm dead band [%]: in percent of full scale, 0-5%
  • Merge Alarms: Send concurrent alarms in one SMS, yes, no.
Other Parameters
  • Purge Logs after a number of Data send attempts.
  • Battery Gauging Off or Enabled.
  • MODBUS Baudrate 9600-115200.
  • MODBUS Protocol: ASCII or RTU

Click on the 'Apply Parameters' check box to use the parameter defaults on the Device configuration forms.
